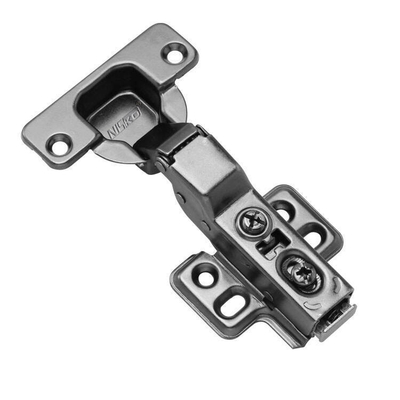

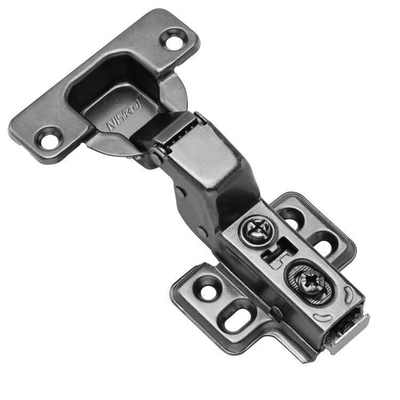

AL04 35mm Cup Cabinet Door Hinge Clip On Soft Close Black Plating

AL04 35mm Cup Soft Closing Black Plated Clip-On Hinge
Modern. Silent. Effortless.

Elevate your cabinetry with the AL04 – a sleek, high-performance hinge that combines modern black aesthetics with advanced soft-closing technology. Designed for frameless kitchen, wardrobe, and bathroom cabinets, this 35mm cup hinge delivers silent, automatic closure, full 3D adjustability, and easy clip-on installation—perfect for both DIY builders and professional installers.

The matte black plating finish offers a contemporary, minimalist look that complements dark wood, glass, or matte finishes—ideal for modern interiors, luxury homes, and commercial spaces. Beyond style, the coating provides enhanced corrosion resistance, protecting against moisture, humidity, and daily wear.

Equipped with an integrated hydraulic damper, the AL04 ensures doors close smoothly and silently—no slamming, even when pushed. The clip-on design allows for quick, tool-free installation and removal, speeding up production and maintenance.

With triaxial (3D) adjustment, you can fine-tune the door position in vertical, lateral, and depth directions, ensuring perfect alignment every time—critical for high-end cabinetry and mass production.

Built from high-strength zinc alloy (ZL01/Zamak3), the AL04 is rigorously tested for over 50,000 open/close cycles, ensuring long-term reliability in residential and commercial environments.

Key Features:

✅ Soft Closing Damping – Hydraulic buffer ensures silent, automatic door closure—eliminates slamming.
✅ 35mm Standard Cup – Fits 16–18mm door panels with standard 35mm bore (11mm depth).
✅ Clip-On Design – Tool-free installation & removal—saves time during assembly and servicing.
✅ 3D Adjustability – Precision alignment in three directions:

• Vertical (Up/Down): ±2.5mm
• Lateral (Left/Right): ±2.0mm
• Depth (Front/Back): ±1.5mm
  ✅ 105° Opening Angle – Wider than standard 95° hinges—ideal for deep cabinets and full access.
  ✅ Black Plated Finish – Matte/satin black electroplating resists scratches, fingerprints, and corrosion.
  ✅ Durable Material – Zinc alloy body with reinforced nylon components for strength and smooth operation.
  ✅ High Cycle Life – Tested for 50,000+ open/close cycles—built for daily use.
  ✅ Universal Compatibility – Works with standard European mounting plates and frameless cabinet systems.
