Nisko Hardware Tech Co., Ltd.
|
| Brand Name: | NISKO |
| Model Number: | AY05 |
| MOQ: | 2000 |
| Price: | $0.12-0.4/pc |
| Payment Terms: | TT,LC |
| Supply Ability: | 8000000pcs |

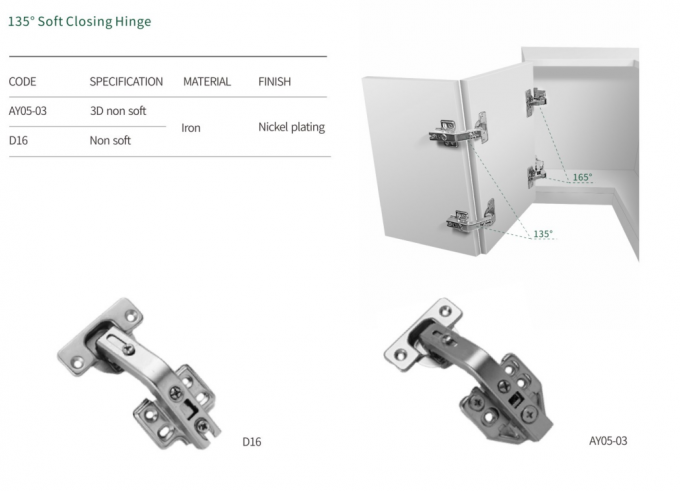

| Type | 135° Soft Closing Hinge |
| Model Number | AY05/D16 |
| Material | Iron |
| Finish | Nickel Plating |
| Specification | Soft close, 3D Non Soft Close |
Designed for kitchen and storage cabinet manufacturers, the AY05 135 ° Soft Closing Hinge solves the common challenge of limited access in corner units. With an ultra-wide 135 ° opening angle, this hinge allows cabinet doors to swing open significantly farther than standard 95° or 105° hinges -- providing full visibility and easy reach into deep corners, reducing wasted space and improving user experience.
Perfect for frameless kitchen cabinets, corner pantries, bathroom vanities, and wardrobe systems, the AY05 combines functional innovation with durable engineering.
Featuring a precision hydraulic damper, the hinge delivers soft, silent, automatic closing -- eliminating slamming, reducing wear, and enhancing safety in homes and commercial spaces. The satin nickel plating offers a bright, elegant finish with excellent corrosion and fingerprint resistance, ideal for humid environments.
The clip-on design enables tool-free installation and removal, significantly reducing assembly time and labor costs -- a critical advantage for mass production and after-service maintenance.
With full 3D (triaxial) adjustability (vertical, lateral, and depth), the AY05 ensures perfect door alignment even after installation -- essential for high-end cabinetry and precision-fit furniture.
Constructed from high-grade zinc alloy (ZL01/Zamak3) and reinforced with stainless steel shafts and nylon bushings, this hinge is tested for 50,000+ open/close cycles, ensuring long-term reliability in residential and commercial applications.
| Opening Angle | 135° (Ultra-Wide) - Ideal for corner access |
| Closing Mechanism | Hydraulic soft close - Silent, automatic damping |
| Installation Type | Clip-on (hinge body snaps into mounting plate) |
| Adjustability | 3D Adjustable: ±2.5mm (vertical), ±2.0mm (lateral), ±1.5mm (depth) |
| Cup Diameter | 35mm standard (fits 16-18mm door panels) |
| Mounting Plate | Included - For side panel screw-on installation |
| Material | Zinc Alloy (ZL01) body + Stainless Steel shaft + Nylon bushings |
| Finish | Satin Nickel Plating (Ni-Cu-Ni, 72hr salt spray tested) |
| Load Capacity | Supports doors up to 20kg (pair) |
| Cycle Life | 50,000+ open/close cycles tested |
| Compatibility | European frameless cabinets, standard aluminum mounting systems |
| Packaging | 1 pc, 2 pcs (pair), or bulk (50/100 pcs per box) |
