AY06 -45° Negative Angle Soft Closing Hinge Full / Half Overlay

AY06 -45° Negative Angle Soft Closing Full/Half Overlay Hinge
Precision for the Most Demanding Angles.

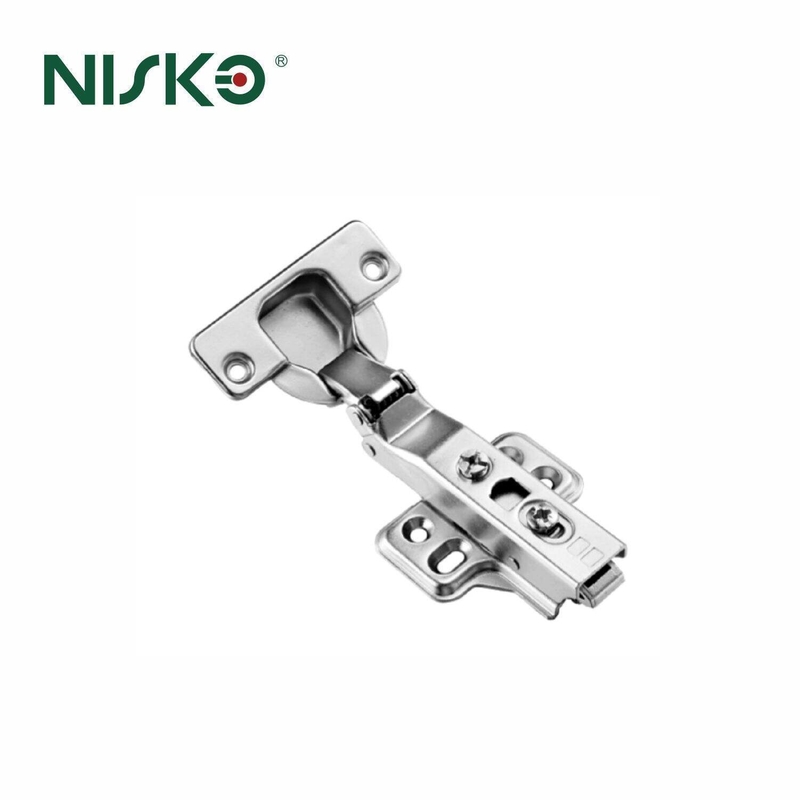

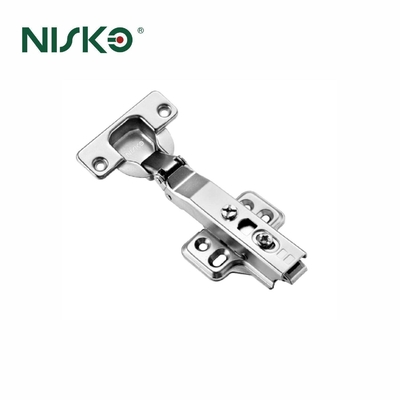

Introducing the AY06 -45° Negative Angle Hinge — a specialized cabinet hinge designed for inset, recessed, and inward-angled door installations where doors must open into the cabinet at a -45° angle relative to the frame.

Perfect for L-shaped kitchens, diamond corner units, display cabinets, and architectural furniture, the AY06 ensures smooth clearance, elegant motion, and perfect alignment in complex spatial layouts — solving design challenges that standard hinges cannot address.

The -45° opening angle allows the door to swing inward at a precise negative angle, creating a clean, flush transition between adjacent cabinets and enhancing accessibility in tight spaces. This makes the AY06 an essential component for high-end kitchen designs, luxury interiors, and space-optimized furniture.

Equipped with an integrated hydraulic damper, the AY06 delivers soft, silent, automatic door closure — eliminating slamming, reducing noise, and protecting cabinetry from impact. This enhances user comfort, safety, and product longevity in both residential and commercial environments.

The clip-on installation system allows the hinge body to snap securely into the mounting plate — enabling tool-free assembly and easy maintenance. This reduces labor time by up to 50%, making it ideal for mass production and after-service adjustments.

With full 3D (triaxial) adjustability (±2.5mm vertical, ±2.0mm lateral, ±1.5mm depth), the AY06 ensures perfect door alignment even in the most complex installations — a must for precision cabinetry and high-end finishes.

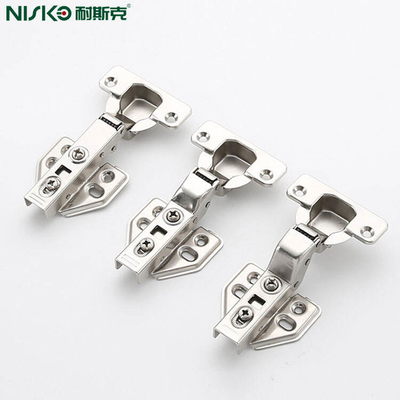

Constructed from high-grade zinc alloy (ZL01/Zamak3) with stainless steel shafts and nylon bushings, the AY06 is tested for 50,000+ open/close cycles, ensuring long-term durability and smooth performance under daily use.

Available in Full Overlay and Half Overlay configurations, the AY06 offers maximum design flexibility — allowing manufacturers to support multiple door styles with a single hinge platform.

Finished with satin nickel plating, the hinge is 72-hour salt spray tested, providing excellent corrosion resistance — ideal for kitchens, bathrooms, and humid environments.

Designed to NISKO-compatible standards, the AY06 integrates seamlessly with common European mounting systems, making it a direct upgrade or replacement for standard 35mm cup hinges.

⭐ Key Features & Specifications:
