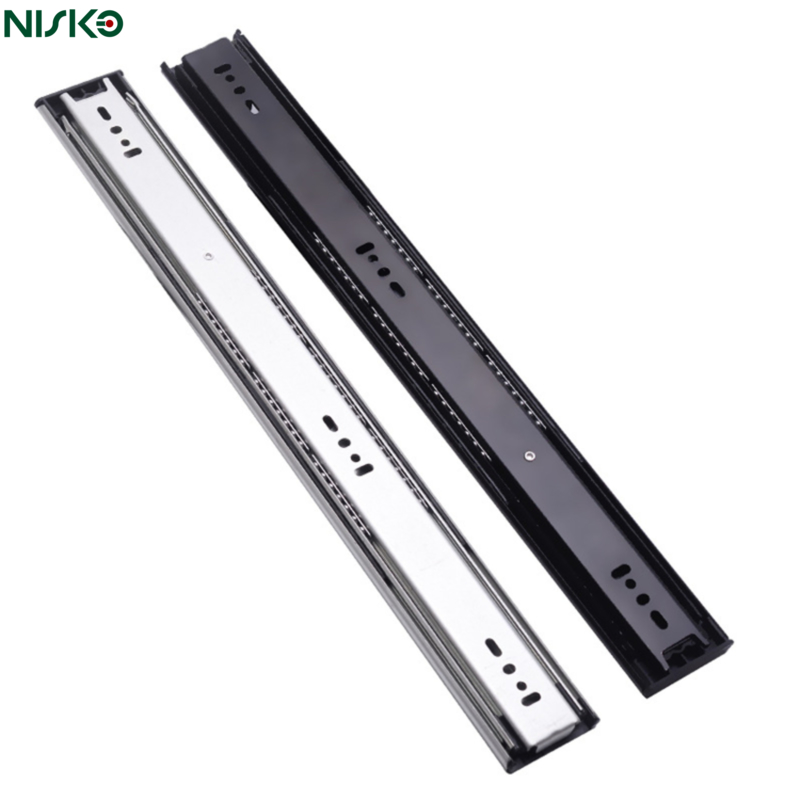

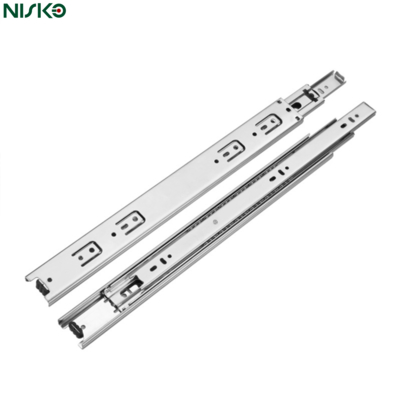

SS304 Ball Bearing Soft Closing Drawer Slide With Full Extension Function

Full Extension Stainless Steel Soft Closing Ball Bearing Slide
Engineered for Strength. Built for Longevity. Designed for Silence.

Introducing the Full Extension Stainless Steel Soft Closing Ball Bearing Slide — a high-performance drawer runner system crafted entirely from AISI 304 stainless steel, delivering 100% full extension, whisper-quiet soft-close operation, and unmatched resistance to rust, moisture, and harsh environments.

Whether you're building commercial kitchen drawers, medical supply carts, marine galleys, or high-end bathroom vanities, this triple-section (3-stage) ball bearing slide ensures smooth, wobble-free motion under heavy loads up to 40kg (88 lbs) per pair, while the integrated hydraulic damper guarantees a gentle, automatic close — eliminating slamming and reducing noise.

Unlike standard carbon steel or coated slides, every component — rails, ball bearings, screws, and mounting hardware — is made from premium 304 stainless steel, ensuring complete corrosion resistance in high-humidity, salt-rich, or chemically aggressive environments.

The 100% full extension design allows the drawer to slide completely out of the cabinet, providing total access to the back of the drawer — essential for kitchen utensil storage, medical equipment, tool organization, and food service applications.

Available in standard lengths from 300mm to 600mm (12" to 24"), these slides are compatible with common European and North American cabinet systems and feature a tool-free push-to-open and push-to-close mechanism — enhancing user experience and enabling rapid installation and maintenance.

Precision dual-row ball bearings in self-lubricating nylon cages ensure ultra-smooth linear motion with zero metal-on-metal friction, eliminating the need for re-lubrication and ensuring maintenance-free operation over the product’s lifespan.

Each slide is electropolished to a smooth, non-porous finish, making it easy to clean and sanitize — meeting hygienic design standards for food processing, laboratories, and healthcare environments.

Tested for 100,000+ open/close cycles (exceeding ANSI/BHMA A156.3 Grade 1 standards), these slides are built for commercial durability — ideal for restaurants, hospitals, yachts, offshore platforms, and luxury homes.

The 4-screw mounting system (top and side) ensures rock-solid stability, minimizing sag even under full load. All M4x10mm stainless steel screws are included, ensuring 100% corrosion-proof assembly.

Available in pair (1 set) for sampling or small projects, or bulk packaging (10 sets per box) for factory supply, these slides meet the needs of both boutique designers and large-scale manufacturers.

⭐ Key Features & Specifications:
