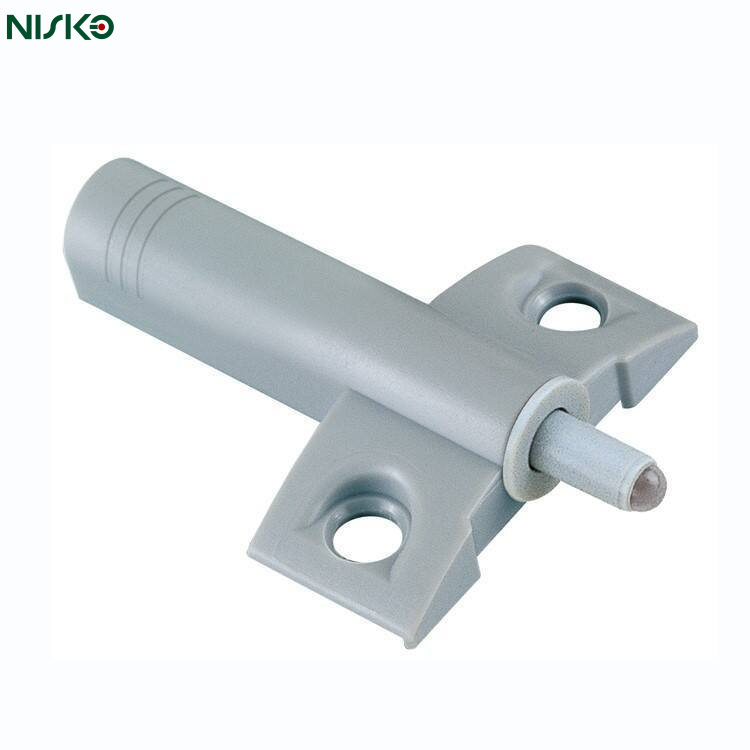

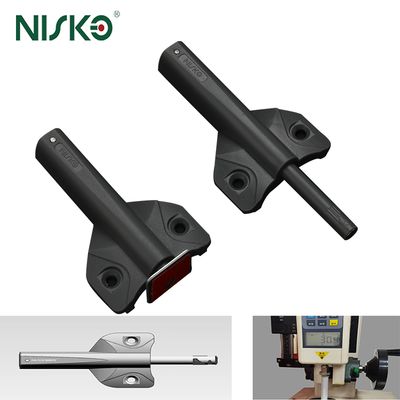

Tip On Push to Open Screw Mount Self-Closing Push Latch
| Type | Push Open |
| Material | Rubber Head/Magnet Head |
| Model Number | FT16(12-18N)/FT16(30N) |
| Color | White, Grey |
| Power | 18N/30N |
Tip-On Push to Open Screw Mount Self-Closing Push Latch
Push. Open. Automatically Close.
Introducing the Tip-On Push to Open Screw Mount Self-Closing Push Latch — a revolutionary hybrid mechanism that delivers the best of both worlds:
✅ Push-to-open convenience (no handles, no pulls)
✅ Automatic self-closing action (door returns to closed position)
Unlike standard push latches that leave doors ajar, this advanced self-closing push latch uses a combination of magnetic holding force and precision spring tension to ensure the door opens with a light push and then automatically closes itself when released — perfect for kitchens, bathrooms, wardrobes, and high-traffic environments where tidy, secure, and quiet operation is essential.
The magnetic tip-on mechanism securely holds the door closed with a smooth, silent engagement. When the user applies gentle pressure (5–8N), the latch disengages, allowing the door to swing open. Upon release, the integrated torsion spring gently pulls the door back to the closed position, where the magnet re-engages for a secure, silent seal.

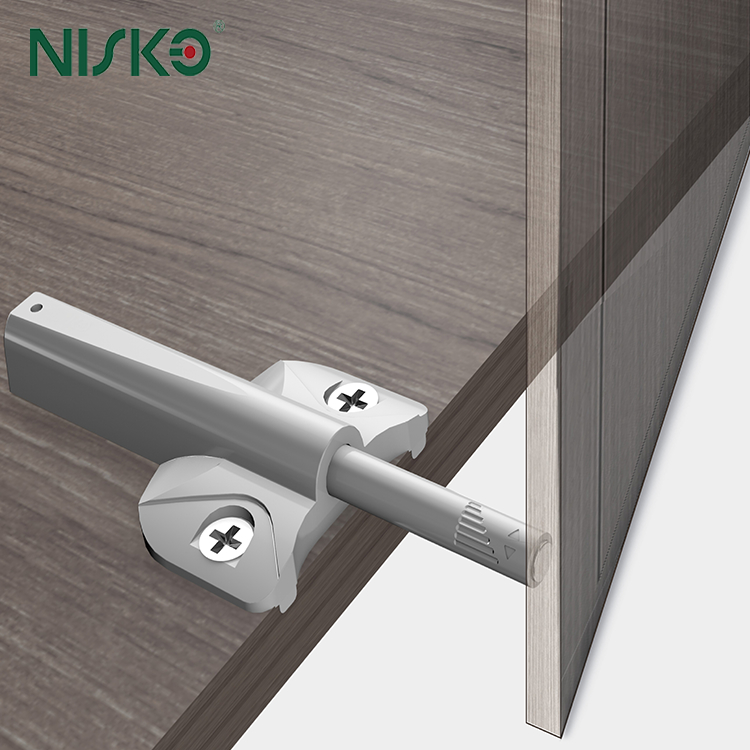

The screw-mount design ensures easy and precise installation on the cabinet frame (stationary part) and door (striker plate), compatible with wood, MDF, plywood, and composite panels (16–22mm thickness).
Constructed from zinc alloy housing, neodymium magnet, stainless steel spring, and TPE rubber contact, this latch is durable, corrosion-resistant, and operates silently across -10°C to +70°C.
Each unit supports door weights from 2–6 kg (4.4–13.2 lbs) and is compatible with soft-close hinges for a fully silent, handleless system.
Ideal for European-style kitchens, luxury apartments, hotels, yachts, office furniture, and smart home cabinetry, this self-closing push latch elevates functionality, safety, and design elegance.
Available in bulk packaging (100 or 200 pcs per box) for OEM factory supply, large projects, and distribution, or sample packs (5–10 pcs) for testing.
OEM/ODM services are available for custom magnetic strength, spring tension, housing color, and private labeling.
| Feature | Specification |
|---|---|
| Model | TIP-ON-SC-01 / TIP-ON-SC-02 |
| Type | Self-Closing Push Latch (Magnetic + Spring Hybrid) |
| Function | Push-to-Open + Automatic Spring Return |
| Mounting | Screw Mount (M4 x 12mm Stainless Steel Screws) |
| Components | 1 x Magnetic Latch Body + 1 x Steel Striker Plate + Spring Mechanism |
| Holding Force | Adjustable (Standard: 3–5 kg) via magnet position |
| Closing Force | Spring-actuated auto-return (adjustable tension) |
| Contact Pad | Soft TPE Rubber – Noise-dampening, scratch-proof |
| Material | Zinc Alloy (Body), Neodymium Magnet, Stainless Steel Spring, TPE Rubber |
| Finish | Nickel Plated, Chrome, or Black Coated |
| Cycle Life | 50,000+ open/close cycles |
| Temperature Range | -10°C to +70°C |
| Compatibility | Works with Soft-Close Hinges, 35mm Cup Hinges |
| Door Thickness | 16–22mm (standard), customizable |
| Packaging Options | 100 pcs, 200 pcs per box |
| OEM Support | Yes – Custom force, tension, size, branding |
