Nisko Hardware Tech Co., Ltd.
|
| Brand Name: | NISKO |
| Model Number: | AF-07 |
| MOQ: | 2000 |
| Price: | $0.12-0.4/pc |
| Payment Terms: | TT,LC |
| Supply Ability: | 8000000pcs |

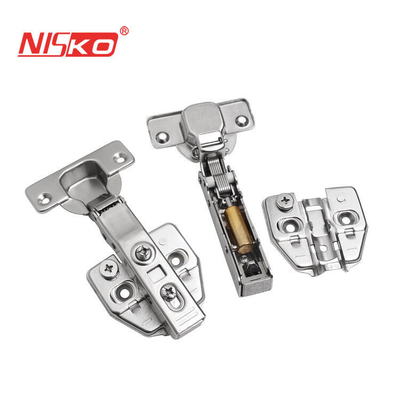

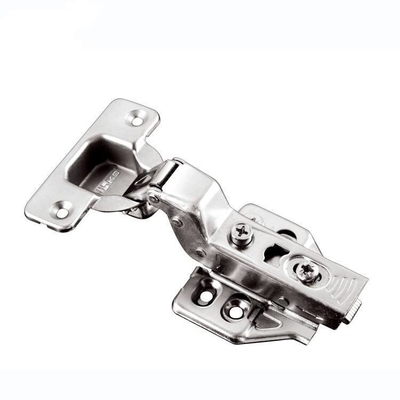

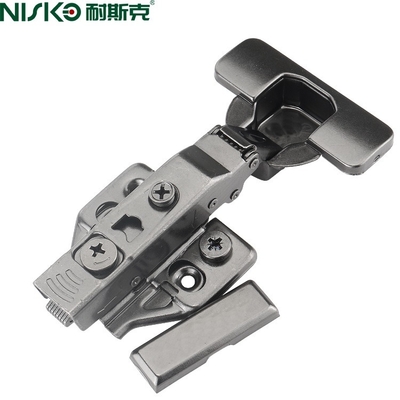

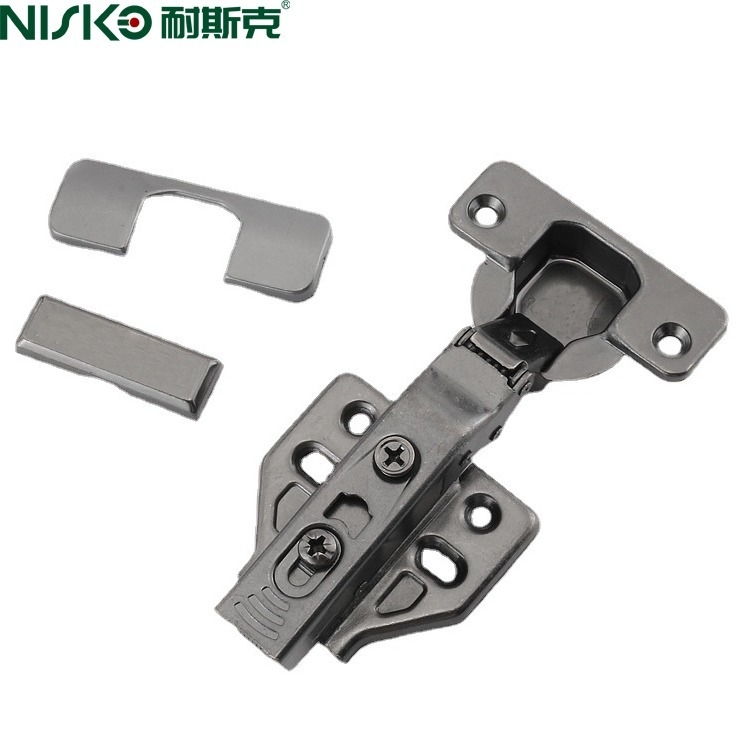

AF-07 Household 3D Adjustable 110° 35mm Metal Hinge
| Type | 3D Soft Close Hinge |
| Model Number | AF-07/08/09 |
| Cup Diameter | 35mm |
| Cup Depth | 11.3mm |
| Max Opening Angle | 110 degrees |
| Material | Cold rolled steel |
| Specification | Soft close, Clip on, 3D |
AF-07 Household 3D Adjustable 110° 35mm Metal Hinge
The Reliable Choice for Everyday Cabinetry.
Introducing the AF-07 Household 3D Adjustable 110° 35mm Metal Hinge — a high-value, durable cabinet hinge designed for standard kitchen, wardrobe, and bathroom furniture where consistent performance, easy installation, and cost-efficiency are essential.
Engineered with a 110° opening angle, the AF-07 provides optimal clearance for most cabinet applications — balancing full access with compact space usage. It’s the ideal standard hinge for base cabinets, wall units, vanity doors, and closet organizers in residential and light commercial environments.
The 3D (triaxial) adjustability system allows for ±2.5mm vertical, ±2.0mm lateral, and ±1.5mm depth adjustments, ensuring perfect door alignment even after installation. This is critical for maintaining a professional finish across large production runs and during after-service maintenance.
Featuring a clip-on (quick-install) design, the AF-07 enables tool-free mounting — the hinge body snaps securely into the pre-installed mounting plate, significantly reducing assembly time and labor costs on the production line. This makes it a top choice for OEMs and furniture factories focused on efficiency and scalability.
Constructed from high-strength zinc alloy (ZL01/Zamak3) with stainless steel shafts and precision nylon bushings, the AF-07 delivers smooth operation and long-term durability. It has been tested for 50,000+ open/close cycles (EN 15570 compliant), ensuring reliable performance in daily household use.
The hinge features a 35mm standard cup diameter, compatible with 16–18mm door panels and common European drilling templates (35mm cup, 5mm offset). It is NISKO-compatible, ensuring seamless integration with standard mounting systems used globally.
Available in a full overlay configuration (standard), the AF-07 is ideal for frameless cabinet designs commonly used in modern kitchens and wardrobes. Custom half overlay or inset versions are available upon request for OEM partners.
The satin nickel finish provides a clean, modern appearance and has passed 72-hour salt spray testing (ASTM B117), offering excellent resistance to corrosion — perfect for kitchens and bathrooms with fluctuating humidity levels.
Packaged in bulk boxes of 50 pieces, the AF-07 is optimized for high-volume orders, warehouse distribution, and furniture factory supply chains — reducing packaging waste and streamlining inventory management.
| Feature | Specification |
|---|---|
| Model | AF-07 Household Cabinet Hinge |
| Opening Angle | 110° (Standard optimal clearance) |
| Closing Mechanism | Standard smooth close (non-soft close) – Soft-close version available on request |
| Installation Type | Clip-on (hinge body snaps into mounting plate) |
| Adjustability | 3D Adjustable: ±2.5mm (vertical), ±2.0mm (lateral), ±1.5mm (depth) |
| Cup Diameter | 35mm standard (fits 16–18mm door panels) |
| Mounting Plate | Included – Full Overlay (standard) |
| Material | Zinc Alloy (ZL01) body + Stainless Steel shaft + Nylon bushings |
| Finish | Satin Nickel Plating (72hr salt spray tested) |
| Load Capacity | Supports doors up to 18kg (per pair) |
| Cycle Life | 50,000+ open/close cycles (EN 15570 compliant) |
| Compatibility | NISKO standard, European frameless cabinets, 35mm cup drilling |
| Arm Type | Standard arm – Balanced for general use |
| Packaging | 50 pcs per box (bulk packaging for cost efficiency) |
