AF-10C Door Pivot Hinge Soft Closing Clip On 3D Adjustable

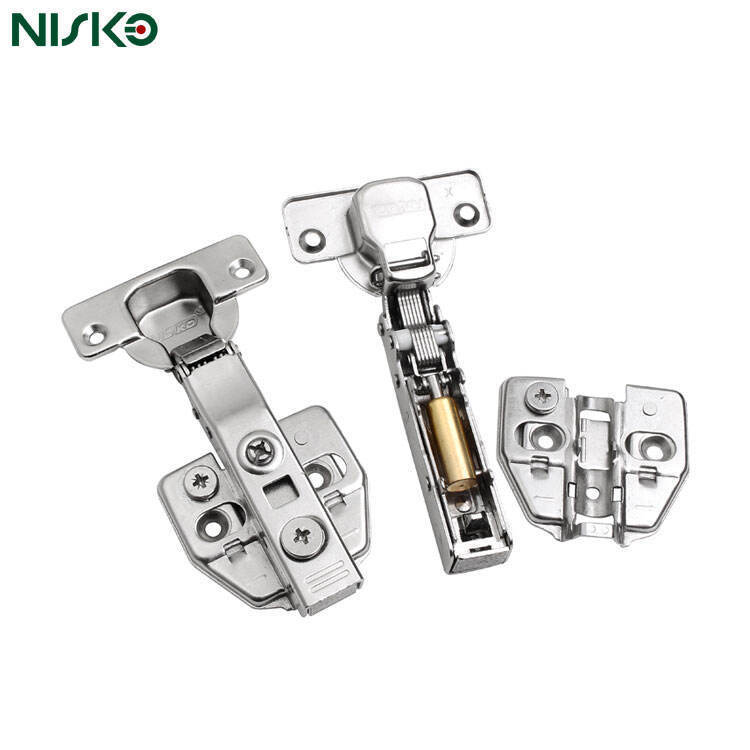

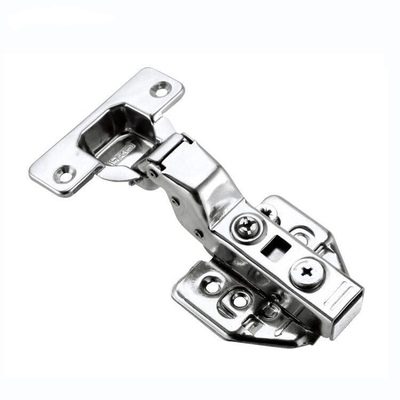

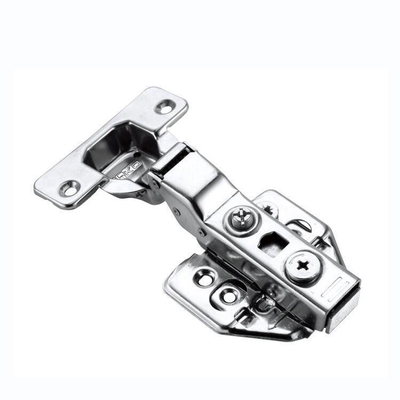

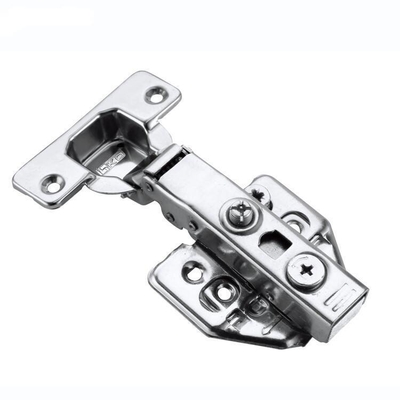

AF-10C Soft Closing Clip-On 3D Adjustable Door Pivot Hinge
Precision. Silence. Simplicity.

Engineered for modern cabinetry, the AF-10C Pivot Hinge delivers smooth 105° door opening with soft-closing damping and 3D (triaxial) adjustability, ensuring perfect door alignment and silent closure every time.

Designed with a clip-on (snap-in) mounting system, this European-style hinge allows for tool-free installation and removal—simply click the hinge into the pre-installed mounting plate. Ideal for kitchen base & wall cabinets, wardrobes, vanities, and frameless furniture, the AF-10C combines professional performance with user-friendly convenience.

Whether you're a cabinet manufacturer, builder, or DIY enthusiast, the AF-10C offers long-lasting durability, quiet operation, and flawless fit—even after years of daily use.

Key Features:

✅ Soft-Closing Damping Technology – Hydraulic buffer ensures silent, gentle door closure—no slamming, even when pushed hard.
✅ Clip-On (Snap-In) Installation – No tools needed to attach/detach hinge from plate—quick and easy maintenance or replacement.
✅ 3D Adjustability – Fine-tune door position in three directions:

• Vertical (Up/Down) – ±2.5mm
• Horizontal (In/Out) – ±2.0mm
• Depth (Front/Back) – ±1.5mm
  ✅ 105° Opening Angle – Wider than standard 95° hinges—perfect for deep cabinets and easy access.
  ✅ High-Quality Materials – Made from zinc alloy (arm) + reinforced nylon (base) for strength, corrosion resistance, and smooth motion.
  ✅ Frameless Cabinet Compatible – Designed for 16–18mm panel thickness (standard in modern kitchens).
  ✅ Durable & Long-Lasting – Tested for 50,000+ open/close cycles and 48–72 hours salt spray resistance.
  ✅ Universal Fit – Matches standard 35mm cup hole (35mm diameter, 11mm depth)—compatible with European cabinet standards.
