Telescopic Concealed Drawer Runner Slide Push Open Zinc Plating

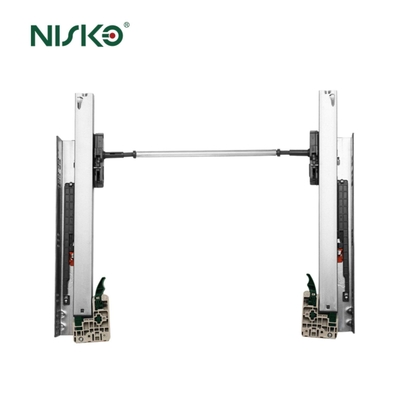

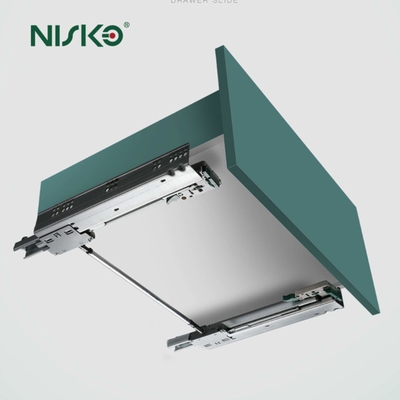

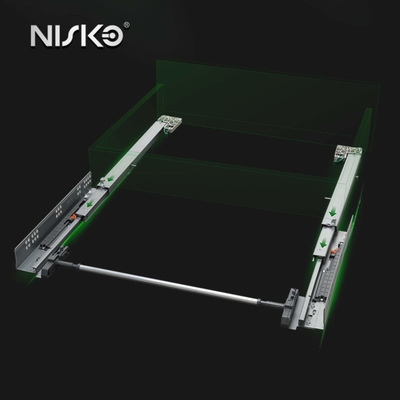

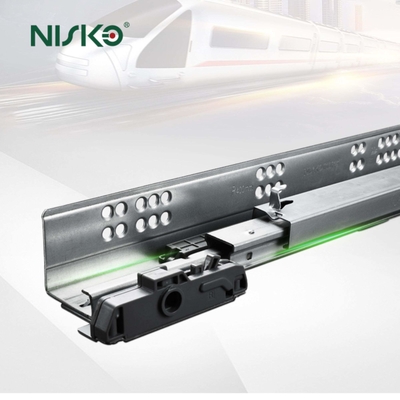

Hardware Telescopic Push Open Concealed Slide Drawer Runners
Invisible. Intuitive. Impeccable.

Introducing the Telescopic Push Open Concealed Slide Drawer Runners — a next-generation drawer system that combines complete concealment, full functionality, and intuitive operation for modern, handleless furniture and cabinetry.

Designed for contemporary kitchens, luxury bathrooms, minimalist wardrobes, and high-end retail displays, these triple-section (3-stage) full extension ball bearing slides deliver 100% drawer pull-out with a simple push to open and a silent, automatic soft close — all while remaining completely hidden when the drawer is closed.

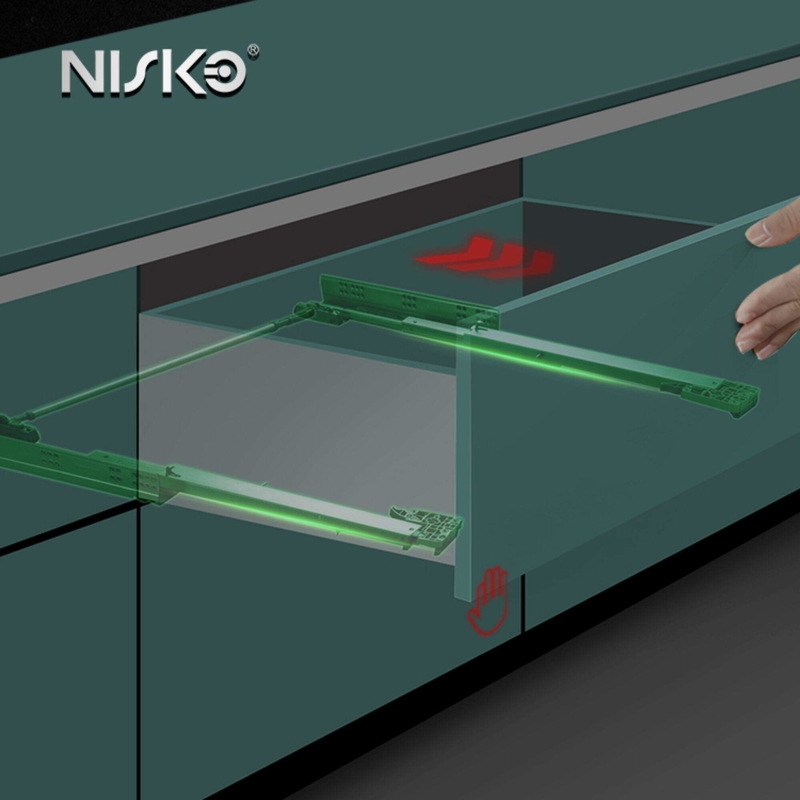

The integrated push-open mechanism eliminates the need for handles, knobs, or pulls, enabling clean, uninterrupted surfaces that define modern interior design. A light press on the drawer front activates the spring-assisted release, smoothly gliding the drawer open. When closing, a gentle push engages the hydraulic damper, which ensures quiet, controlled closure — protecting cabinetry and enhancing user experience.

Available in premium AISI 304 stainless steel or high-strength carbon steel with anti-corrosion coating, these slides offer exceptional durability and smooth, wobble-free motion thanks to dual-row precision ball bearings in self-lubricating nylon cages.

With a standard 50mm mounting width, these slides fit most European and North American cabinet systems and are compatible with 500mm cabinet openings. They are available in lengths from 300mm to 600mm (12" to 24"), ensuring flexibility for a wide range of drawer depths.

Each slide supports a robust 35kg (77 lbs) load per pair, making them ideal for utensil drawers, tool storage, medical carts, and heavy-duty furniture applications.

The electropolished stainless steel finish (or matte black powder-coated carbon steel) resists fingerprints, scratches, and cleaning chemicals — ideal for high-traffic environments and hygienic spaces like hospitals, yachts, and food service areas.

Tested for 100,000+ open/close cycles, these slides exceed ANSI/BHMA A156.3 Grade 1 standards, ensuring long-term reliability in residential and commercial settings.

Installation is simple and secure with a 4-screw mounting system (top and side), and all stainless steel mounting hardware is included for complete corrosion resistance.

Available in pair (1 set) for sampling or small projects, or bulk packaging (10 sets per box) for factory supply, these slides are perfect for OEMs, furniture brands, and global distributors seeking high-performance, design-forward hardware.

⭐ Key Features & Specifications:
