Nisko Hardware Tech Co., Ltd.
|
| Brand Name: | NISKO |
| Model Number: | E10-6 |
| MOQ: | 100pairs |
| Price: | $1.2-5/pair |
| Payment Terms: | TT,LC |
| Supply Ability: | 8000000 pairs/Month |

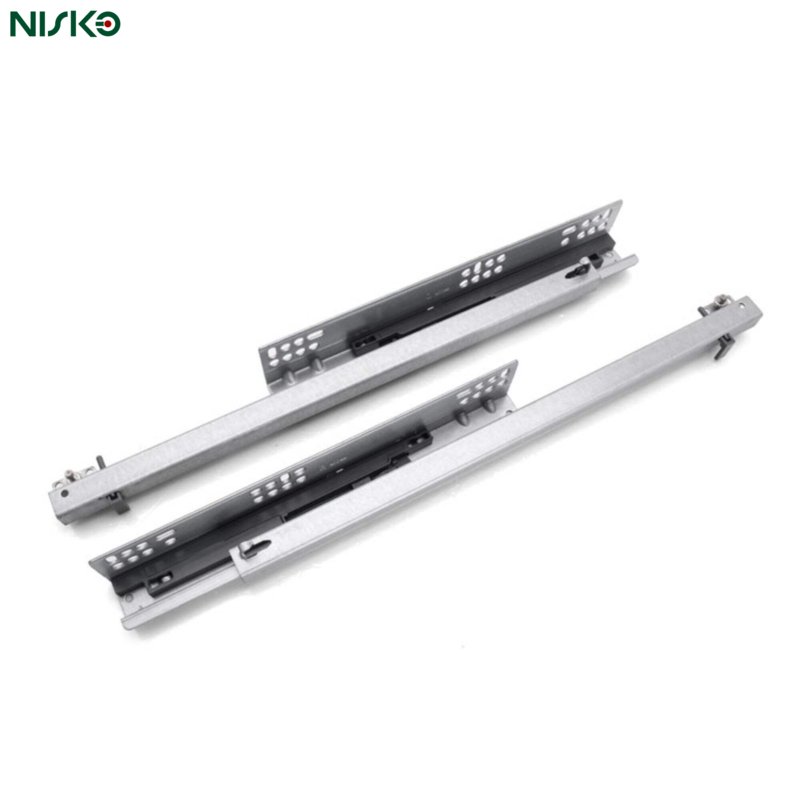

Telescopic Single Extension Concealed Soft Closing Slide with Pin
| Type | Single Extension Concealed Soft Close Slide |
| Model Number | E10-6 |
| Material | Galvanized Sheed |
| Length | 12''/14''/16''/18''/20'' |
| Fix | Screw/Plastic Bracket/Alloy Bracket |
| Loading Capacity | 40kg(14''-20'') |
| Thickness of Material | 1.5/1.8mm |
| Side Panel Thickness | 16/18mm |
Telescopic Single Extension Concealed Soft Closing Slide with Pin
Invisible Strength. Silent Elegance. Hidden Functionality.
Introducing the Telescopic Single Extension Concealed Soft Closing Slide with Pin — a discreet, minimalist drawer runner system engineered for light-duty applications where clean lines, hidden hardware, and gentle closing are key.
Unlike full-extension ball bearing slides, this concealed slide is designed for shallow drawers in vanities, nightstands, decorative cabinets, jewelry boxes, and wall units — where only partial extension (single extension) is needed, and visual purity is paramount.
The pin-type mounting system allows for quick, tool-free drawer engagement and disengagement, making installation and maintenance effortless. The drawer simply drops onto the pin and slides forward, while the integrated soft-close mechanism ensures it closes silently and gently — eliminating slamming and protecting delicate cabinetry.
Constructed from high-strength cold-rolled carbon steel with electroplated anti-rust coating, this slide offers excellent durability for indoor residential and light commercial use. The smooth zinc-plated or matte black finish blends seamlessly with hidden installations.
The telescopic design allows the drawer to extend approximately 70–80% of its length (depending on model), providing adequate access for small storage needs while maintaining structural concealment.
Available in compact lengths from 150mm to 300mm (6" to 12"), these slides are ideal for narrow or shallow drawers where space is limited and traditional slides would be visible.
The soft-close function is fully automatic — no latches or catches required. A simple push closes the drawer, and the hydraulic buffer takes over to complete the motion silently.
Perfect for handleless furniture designs, this slide supports push-to-open functionality when paired with a spring-assist mechanism or elastic latch (sold separately or integrated into cabinet design).
Each slide is pre-assembled and ready to install, with mounting holes on the cabinet side rail for screw fixation. The pin mechanism is robust and wear-resistant, tested for 30,000+ open/close cycles.
Available in pair (1 set) for sampling or small projects, or bulk packaging (10 sets per box) for factory supply, these slides are ideal for boutique furniture makers, custom cabinet shops, and volume OEMs seeking cost-effective, elegant solutions.
| Feature | Specification |
|---|---|
| Model | CS-PIN150 to CS-PIN300 Concealed Slide |
| Type | Telescopic, Single Extension (Partial Pull-Out) |
| Closing Mechanism | Hydraulic soft close – Silent, automatic damping |
| Extension | ~70–80% of rail length (Single Extension) |
| Load Capacity | 10–15kg (22–33 lbs) per pair – Light to medium duty |
| Length Options | 150mm, 200mm, 250mm, 300mm |
| Material | Cold-rolled carbon steel with anti-rust electroplating |
| Finish | Zinc-plated (silver) or Matte Black (powder-coated) |
| Mounting | Cabinet-side screw mount + Drawer-side pin engagement |
| Operation | Push-to-close soft close; Push-to-open (with spring assist) |
| Cycle Life | 30,000+ open/close cycles |
| Temperature Range | 0°C to +60°C |
| Packaging Options | 1 Pair (1 Set), 10 Sets/Box (Bulk) |
